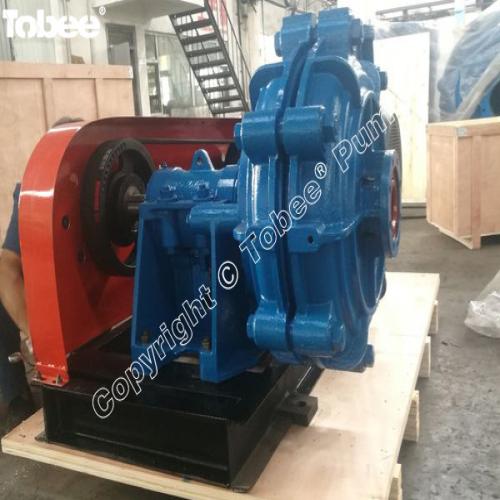

10x8E-M 10x8E-M Medium Duty Slurry Pump Description

10x8E-M Medium Duty Slurry PumpSPECIFICATIONS:Size: 10" to 8" Capacity: 666-1440 m3/h Head: 14-60 m Speed: 600-1100rpm NPSHr: 4-10m Eff.: 73% Power: Max.120kw Handling solids: 65mm Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc.

10x8E-M Medium Duty Slurry Pump is cantilevered, horizontal and centrifugal with double casing structure, It mainly suitable for pumping medium concentration slurries, 10x8E-M slurry pump applies in coal washer processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station etc.

Design Features:

√ Modular design for ease of maintenance.

√ Medium duty one piece frame base with lifting points for easy maintenance.

√ Standard ductile iron outer casings for higher working pressures and incorporating lifting points.

√ Standard or advanced bearing assembly improves reliability to extend bearing life reduce lubrication costs.

√ Shaft sealing for increased reliability, stuffing box, expeller, elevated seal or mechanical seal options available.

√ Standard or advanced impeller design options available.

√ Allows ease of fitting multiple liner materials, including hard metal, thick section rubber or polyurethane.

√ Single piece sleeve for stuffing box sealing, lowers stock holding and maintenance.

√ Multi-purpose design allows for reduced inventory requirements and interchangeability.

√ Belt guards allows for ease of maintenance and inspection of belt condition.

Material	A05
