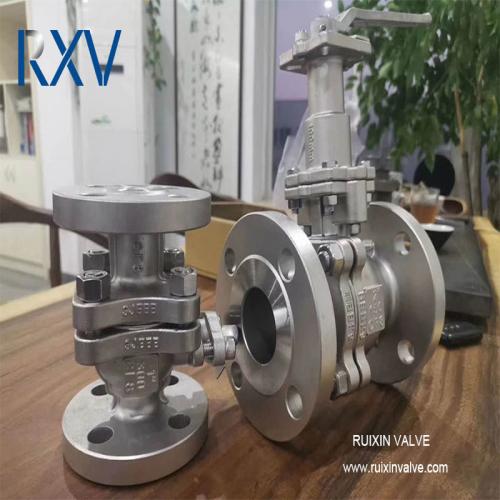

2pc stainless steel ball valve with Extended stem RF connection
- Model Number: B288
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T,L/C,Western Union
- MemberShip: Free Member
- Inquiry Now
B288 2pc stainless steel ball valve with Extended stem RF connection Description
Product DetailsSize1/2 inch - 10 inch
Pressure Rating
150LB-600LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/Bonnet: A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC.
Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC
Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal
Features And Benefits
One/ Two/Three Piece
Full or Reduce Bore
Floating Ball,Hollow Or Solid Ball
Fire Safety Seat Sealing
Anti-Static Spring Device
Blow-out proof stem
Low Emission
Locking device (option)
ISO-5211 mounting pad for actuator (option)
Operated by Lever ,Electric.Pneumatic Actuator
Standard
Design and Manufactures: API 6D/ ASME B16.34/ BS 5351/ API 608
Face To Face :ANSI B16.10
End Flange : ANSI B16.5, BW Ends To ANSI B16.25
Fire Safe : API 607 Or API6FA
Checking & Test : API 598
Pressure-Temperature: ASME B16.34
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
