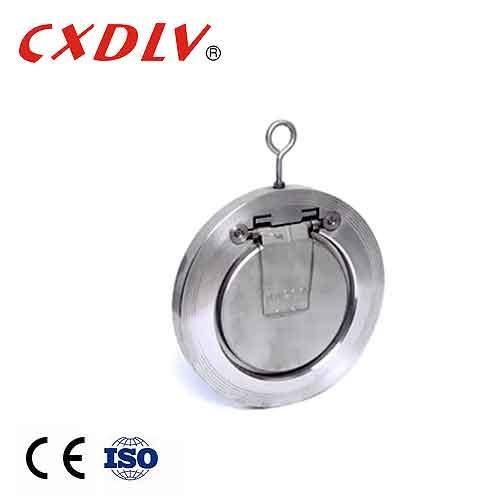

ANSI Single Disc Swing Wafer Check Valve Spring Type Round Wafer 150 LB

ANSI Single Disc Swing Wafer Check Valve Spring Type Round Wafer 150 LB
  • Model Number: H74
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

H74 ANSI Single Disc Swing Wafer Check Valve Spring Type Round Wafer 150 LB Description

Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- 1/1/2"~24"

Pressure Rating:
- 125LB~600LB
Temperature Range:
- -29°C~180°C


 Application



     H74 type wafer-type check valve is an ultra-thin check valve. Its main function is to prevent backflow of medium. It is an automatic valve that relies on medium pressure to open and close. Due to the structure of the clip-type check valve. The length is shorter than the general flange type check valve, and it is most suitable for places with installation space restrictions.


Material SS304/316/WCB
Size - 1/2 " ~ 8 "
Temperature -20°C~185°C
Standard ANSI GB JIS DIN
