Gate Valve Body Gate Valve Body Description

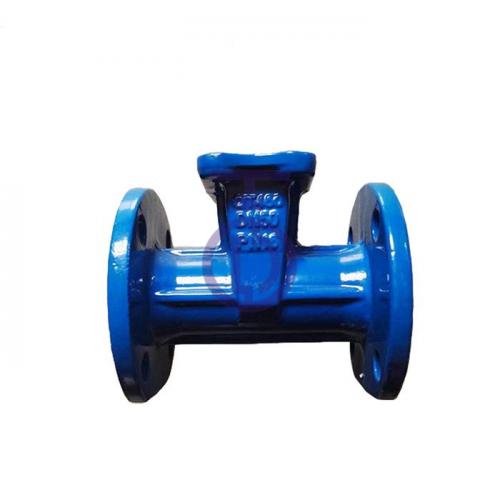

 Gate Valve Body

Design and Manufacture Conform to MSS SP-85

Flange dimensions Conform to ANSI B16.1 CLASS125

Face to Face dimensions Conform to ANSI B16.10

Testing Conform to MSS SP-85

Sutiable Media： Water， Oil，Gas

The Choice of the Material

BODY

Cast iron/Ductile iron/AL-bronze/Stainless Steel/Duplex Stainless Steel

DISC

Dutile iron/AL-bronze/CF8/CF8M/SS201/SS302/SS316

BONNET

Ductile iron/AL-bronze/Duplex Stainless Steel/CF8/CF98M

STEM

Carbon Steel/SS410/SS416/SS420/SS304/SS316/MONELO K500

SEAT

NBR(buna-N)/EPDM/PTFE/Nature Rubber/VITON/Hypalon

SHORT BUSHING

PTFE

LONG BUSHING

PTFE

O-ring

NBR/EPDM

PIN

SS403/SS316/MONEL K500/Duplex Stainless Steel

Advantage

The gate valve has a simple shape, short structure length, great manufacturing process and wide application range. cast iron gate valve flow resistance is small, applicable pressure, temperature range,medium flow direction is not restricted,good sealing performance.It can be widely used in water supply, construction, petroleum, industry, electric power, ship and energy system as regulating and intercepting device.
