Single Way Wafer Check Valve Ultra Thin Single Lobed Stainless Steel / Carbon Steel

Single Way Wafer Check Valve Ultra Thin Single Lobed Stainless Steel / Carbon Steel
  • Model Number: H71
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

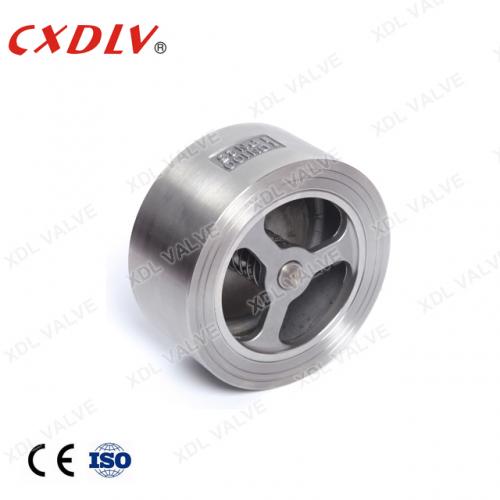

H71 Single Way Wafer Check Valve Ultra Thin Single Lobed Stainless Steel / Carbon Steel Description

Single One Way Ultra Thin Stainless Steel Carbon Steel Swing Disc Wafer Check Valve

 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C

Technical dataPN(MPa) Nominal pressure1.01.62.54.0(MPa) Shell testing pressure1.52.43.756.0(MPa) Seal testing pressure1.11.762.754.4°C Suitable temperature<400(Hard seal) <120(<250)(Soft seal)Suitable mediumsOil, water, acid and alkali liquid



Meterial of main parts

Part nameValve body, valve discSeat ringMeterialGarbon steel, stainless steel, copperNBR,EPDM,PTFE


Material SS304/316/WCB
Size DN15-DN200
Temperature -20°C~185°C
Connection Flanged ends
Standard
