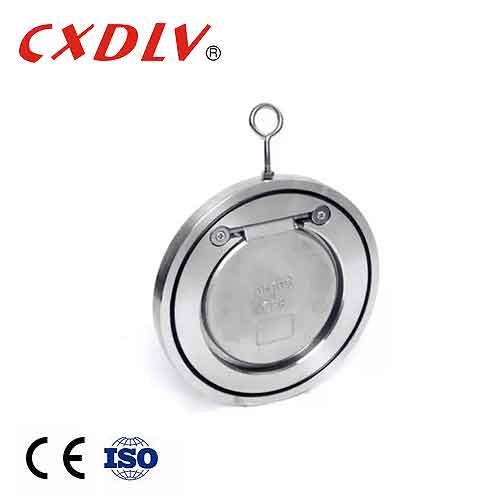

Soft Seal Single Plate Swing Wafer Check Valve GB Standard PN16

Soft Seal Single Plate Swing Wafer Check Valve GB Standard PN16
  • Model Number: H74
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

H74 Soft Seal Single Plate Swing Wafer Check Valve GB Standard PN16 Description

  Soft Seal Single Plate Swing Wafer Check Valve GB Standard PN16



 Specifications



Applicable Standards:

-FACE TO FACE: AP16D/ANSE B16.10

-FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C



 Application



      The clamped check valve is made of carbon steel and stainless steel. It is manufactured in accordance with JB and API standards. It is suitable for large diameter applications. The pressure is 1.6-4.0mpa (150LB-600LB), the diameter is DN50-1500mm, and the medium is water and oil. Chemical, petrochemical, petroleum, electric power, liquefied gas, water supply and drainage, municipal, urban construction and other fields of liquids such as acid and alkali are used as an automatic valve device to prevent fluid backflow.


Material SS304/316/WCB
Size DN15-DN200
Temperature -20°C~185°C
Standard ANSI GB JIS DIN
Media Water Oli Gas
