Wenzhouxidelong valveco,.Ltd was founded in 2007, main in producing and supplying products like ball valve, check valve, gate valve and so on, our products are selled to Europe, America, Southeast Asia and other markets.

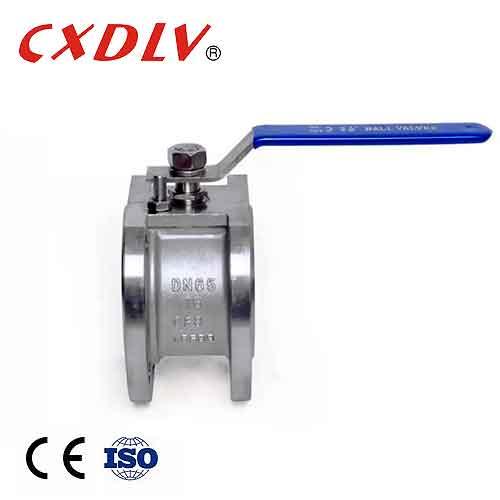

SS316 DN80 Wafer Ends Wafer Ball Valve CF8M 1PC PN16 With Lever Light Weight

SS316 DN80 Wafer Ends Wafer Ball Valve CF8M 1PC PN16 With Lever Light Weight
  • Model Number: Q71F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q71F SS316 DN80 Wafer Ends Wafer Ball Valve CF8M 1PC PN16 With Lever Light Weight Description

 Product Features

 1PC Wafer Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN200

 Nominal Pressure:
- 1.6 ~ 4.0 MPa
Temperature Range:
- 20 °C ~ 350 °C



Wafer Ball Valve is a new generation of ultra-short flange distance ball valve developed by introducing Italian technology for localized design. The shape of the ball channel is rectangular, V-shaped and O-shaped. The product has the characteristics of compact structure, small size, light weight and convenient installation.

 Application

Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.


Material CF8/CF8M/CF3/CF3M/WCB
Size DN15-DN200
Temperature -20°C~350°C
Connection Flanged ends
Standard ANSI GB JIS DIN
Power Manual
Media Water Oli Gas
