• Model Number: 4/3C-AHR Rubber Slurry Pump
• Brand Name: TOBEE PUMP
• Place of Origin: Hebei, China
• Minimum Order Quantity: 1
• Supply Capacity: 100/month
• Payment: T/T
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

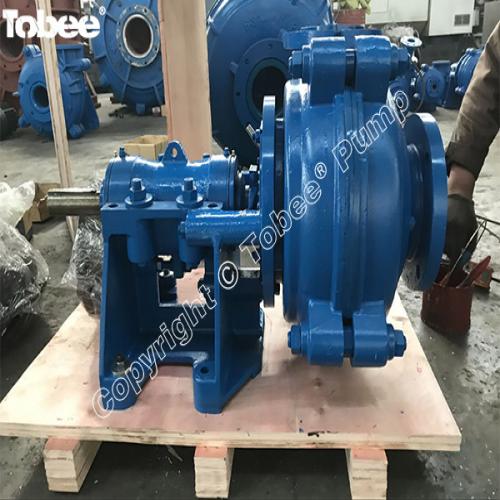

4/3C-AHR Rubber Slurry Pump Tobee 4/3C-AHR Rubber Slurry Pump Description

   Mob:0086 13833117806 4/3C-AHR Rubber Slurry PumpSPECIFICATIONS:Size: 4" x 3" Capacity: 79.2-180m3/h Head: 5-34.5m Speed: 800-1800rpm NPSHr: 3-5m Eff.: 59% Power: Max.30kw Handling solids: 28mm Materials: R08, R26, R55, S02, S12, S21, S31, S42 etc

4/3C-AHR Rubber lined Slurry Pump is widely used for transporting slurry with strong corrosion and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials etc. The wet parts is 100% interchangeable with 4/3C-AH metal lined slurry pump.

Design Features:

√ Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.

√ Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.

√ Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.

√ Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

√ Throatbush: Wear is reduced and maintenance simplified by the use of tapered.
