Tobee 6x4 inch Slurry Pump Frame Plate Liner E4036MR55
- Model Number: 6x4 AH
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
6x4 AH Tobee 6x4 inch Slurry Pump Frame Plate Liner E4036MR55 Description
Sales7(at)tobeepump.com

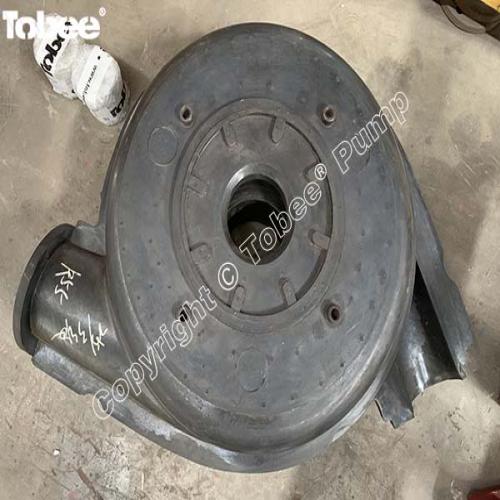

R55 Slurry Pump wear Part Frame Plate Liner E4036MR55 - It can be installed on 6/4D-AHR and 6/4E-AHR Slurry Pump. And it is very easily worn-out components because it works under longtime impact of abrasive and corrosive slurries in the high speed conditions.
Slurry Pump Rubber Frame plate liner is the main wear parts for the rubber lined slurry pump. It forms a pump chamber with cover plate liner and throat bush to contact with slurries, As one of main wetted parts.
Rubber Lined Slurry Pump Parts namely the rubber parts have direct connection with slurries, They are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed, The wetted parts include impeller, cover plate liner, frame plate liner, throat-bush, frame plate liner insert etc, These wear parts are very crucial to the service life of slurry pumps, For the long service life of pump parts, the material plays an important role here, Tobee offers rubber slurry pump parts are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
Tobee® Slurry Pump Rubber Wear Parts:
√ Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints.
√ Impeller - front and rear shrouds have pump out vanes that reduce recalculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
√ Throat-bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
