Tobee Slurry Pump WRT1 Impeller FAM8145WRT1A05A
- Model Number: 10x8
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
10x8 Tobee Slurry Pump WRT1 Impeller FAM8145WRT1A05A Description
Sales7(at)tobeepump.com

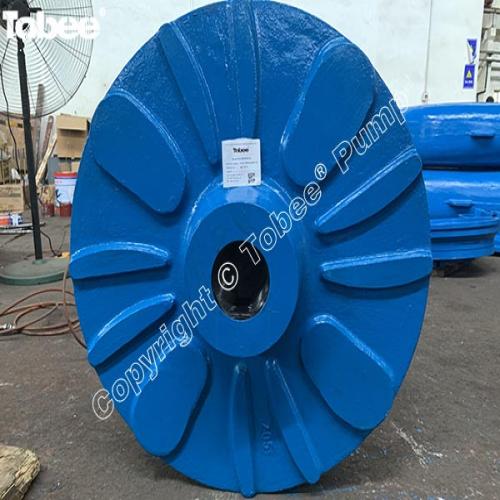

Tobee® Slurry Pump WRT Impeller FAM8147WRT1A05A is closed type with 4 vanes for 10x8AH Centrifugal Slurry Pumps. Its design incorporates a unique vane let on the back shroud which streamlines the flow through the impeller.
Tobee® WRT Spare Parts Wear Reduction Technology:
• Increased wear life – the impeller and throat bush combination will increase wear life between 30% and 50%
• Power savings – lower pump power consumption
• Cost reduction – higher pump efficiency sustained over a longer pumping operation time
• Retrofit – new design parts retrofit to your current AH slurry pumps
• Lower NPSH requirements – results in enhanced hydraulic performance and extended wear life
• Material combinations – rubber or metal part combinations available
Impeller Design:
The five vane impellers in the AH slurry pump range were for many years considered to be the industry 'standard'. However, in order to improve upon one or more of the performance parameters, Tobee started out by using a range of four vane impellers developed for the slurry pumps.
The latest WRT1 impeller
designs maintain the four vane’s advantages, but improved on all of the
performance parameters - efficiency, wear and cavitation performance by
improving the fluid guidance through the impeller with streamlined main pumping vanes, streamlined inlet as well as vane lets at the impeller outlet.
Due to these improvements in performance, the WRT1 impellers represent a step change improvement compared to the older style five vane impeller design.
The WRT® Parts: impeller and throat bush combination with improved hydraulic profiles, reduced turbulence, extended wear performance of between 30% and 50% and lowered power consumption.
Replacement of parts is a maintenance requirement when operating slurry pumps, and can’t be ignored. When your machinery is pumping solids, destructive wear will occur over a period of time. This part of wear and tear is inevitable, therefore you need a helper to rely on to replace the parts effectively, efficiently, and affordably
