D971X Cast Iron Butterfly Vavle Description

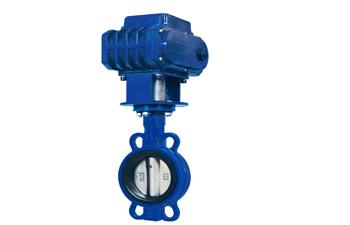

Cast Iron Butterfly Vavle  D971X-10/10Q/16/16Q Electric Drive Type Butterfly Valve

E

Main parts and materials:

Parts name

Material

Valve body

Grey iron、Ductile iron

Seat

PTFE

Disc

Ductile iron

Axle

Carbon steel、Stainless steel

China Famous Valves  Function and specification

Type

Nominal Pressure

(MPa)

Testing pressure

Suitable temperature(℃)

Suitable medium

Strength

(water) MPa

Enclose

(water) MPa

D971X/F-10

D671X/F-10

1.0

1.5

1.1

≤80

Water

D971X/F-16

D671X/F-16

1.6

2.4

1.8

≤80

Water
