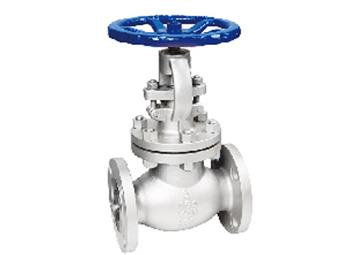

A 0 Cast Steel and Stainless Steel Globe Valve Description

Cast Steel and Stainless Steel Globe Valve  API Globe Valve

Main parts and materials

Parts Name

Materials

Body、Bonnet.DISC

A216 WCB

A352 LCB A217 WC6

A217 WC9 A217 C5 A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

stem

A182 F6

A182 F304

A182 F316

A182 F304L

A182 F316L

Seat ring

A105+13Cr A105+STL A351 CF8 A351 CF8M

DISC RING

13Cr STL A351 CF8 CF8M

China Top Industrial Valves Brand Standards

Design and Manufacture

Face to Face

Flange End

Inspection

ANSI pressure-temp rating

BS1873，ANSI B16.34

ANSI B16.10

ANSI B16.5

API 598

ANSI B16.34

Test Pressure

Test item

Shell Test

Seal test

Back seal test

Air seal test

Medium (MPa)

Water (MPa)

Air (MPa)

Pressure (class)

150

3.

2.2

2.2

0.5-0.7

300

7.8

5.6

5.6

600

15.3

11.2

11.2

900

23.1

16.8

16.8
