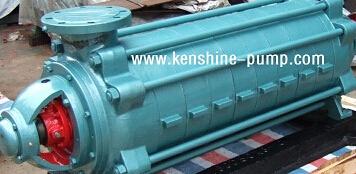

DG50-80*6 DG horizontal multistage centrifugal pump Description

D/DG Horizontal Multistage High Pressure Pump

1.High pressure
2.multistage pump
3.Used for feed water ,boiler feeding ,booster or irrigation

High Pressre Multistage Boiler Feed Water Pump

Product Introduction:

D, DG pump is the horizontal multistage centrifugal pump. Has the efficiency to be high, the performance range is broad, the movement safe steady, the noise is low, the life is long, characteristics and so on installment service /convenience. Are similar for the transportation clear water or the physico-chemical properties to water other liquid. May also through the change pump overflow part material quality, the seal form and increases the cooling system to use in transporting the hot water, the oil class or corrosiveness or contains the abrasive medium. The product carries out JB/T1051-93 "Multistage Clear water Centrifugal pump Pattern .And .Basic .parameter .the .standard

Range of Application:

Suitable for boiler water supply and drainage in municipal projects and factories and mines and industrial cyclic pressurization and distant water transportation, pressurization in high-rising ,fire control in constructions, and so on.

Type Designation:

D/DG 46 - 50×12

D :Segmental feed pump.

G :Boiler pump

46 : Designed flow (m3/h)

50 :Single stage lift head (m)

12 : Stage number

Technology Parameters:

Flow:3.75-500m3/h

Head:19-650m

Power:2.2-1050KW.

Rotary speed:1450 or 2950r/min

Calibre:40-250mm

Temperature range:≤105°C
