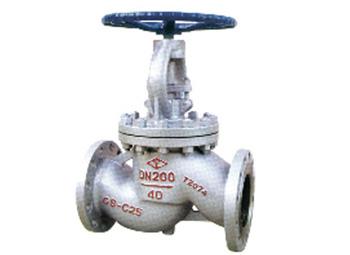

DIN 17245 DIN Globe Valve Description

Cast Steel and Stainless Steel Globe Valve   DIN Globe Valve

Main parts and materials

Parts Name

Materials

Body

DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+STL .

DIN17245 GS-C25+STL

DIN 17445 1.4308

DIN 17445 1.4408

stem

ASTM A182 F6A

ASTM A182 F304

ASTM A182 F316

dise

DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+CR13 .

DIN17245 GS-C25+STL

DIN 17445 1.4308

DIN 17445 1.4408

bonnet

DIN 17245 GS-C25+CR13 .DIN 17245 GS-C25+CR13 .

DIN17245 GS-C25+CR13

DIN 17445 1.4308

DIN 17445 1.4408

China Cast Iron Globe Valve supplier  Standards

Design and Manufacture

Face to Face

Flange End

INSPECTION

BS 1873,BS EN 558-1

DIN3202,EN 1092-1

DIN2543DIN2544DIN2545DIN2546

DIN2547DIN2548

DIN3230

Test pressure

Nominal Pressure

(MPa)

Strength Testing

(MPa)

Seal Test

(MPa)

1.6/2.5/4.0/6.3

2.4/3.8/6.15/9.75

1.8/2.8/4.51/7.15

China top valves supplier-Yuanda manufacture cast iron,Stainless Steel,Cast Steel,Flanged,ANSI,DIN,API,GOS Valves,Such as GOST Gate Valve,Angle Globe Valve,Motorized and Trunnion Ball Valve,Wafer Butterfly Valve,Swing and Lift Check Valve,Y Strainer,etc.
