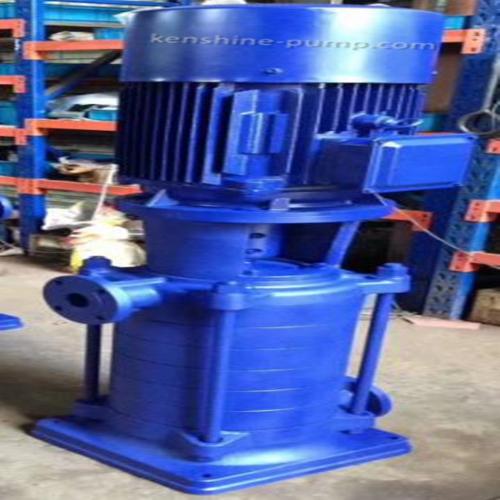

DL Vertical multistage booster water pump 1480rpm
- Model Number: 150DL150-20*3
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1SET
- Supply Capacity: 1000Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
150DL150-20*3 DL Vertical multistage booster water pump 1480rpm Description
DL vertical multistage centrifugal pump is used for conveying liquids with no hard particles and other similar liquids to water in physical and chemical properties .
DL type vertical multistage centrifugal pump adopts domestic excellent high efficiency and energy saving hydraulic model, with high efficiency, steady performance curve, wide operating range, in line with the relevant regulations of the fire department, to meet the needs of different users.
DL vertical multistage centrifugal pump adopts vertical segmental structure, which has the advantages of stable operation, low noise, long service life, small occupation area and convenient installation and maintenance.
DL type vertical multistage centrifugal pump main application
Dl-type vertical multi-stage centrifugal pump is mainly used for domestic water supply of high-rise buildings, constant pressure water supply of fire fighting, automatic spraying water, automatic water curtain water supply, etc. It can also be used for water supply and drainage of factories and mines, long-distance water delivery, various equipment and water for various production processes. The service temperature of DL type vertical multistage centrifugal pump medium shall not exceed 80 degree Celsius, and that of DLR type vertical multistage centrifugal pump shall not exceed 120 degree Celsius.
Flow rate:4.2 to 504m3/h
Head:24 to 240m
Power:1.5 to 450KW
Caliber:40 to 250mm
Temperature:0 to 90 degree Celsius
Working pressure: less than 2.4MPa
Model Stage Flow (m3/h) Flow (L/S) Head Speed Shaft power (kw) Motor power (kw) Efficiency Suction height NPSH
(m) (r/min) (%) (m) (m)
40DL 2 6.2 1.72 23.6 1450 0.92 1.5 40 7 3.19
3 6.2 1.72 35.4 1.38 2.2 40 7 3.19
4 6.2 1.72 47.2 1.84 3 40 7 3.19
5 6.2 1.72 59 2.3 4 40 7 3.19
6 6.2 1.72 70.8 2.75 4 40 7 3.19
7 6.2 1.72 82.6 3.22 5.5 40 7 3.19
8 6.2 1.72 94.4 3.68 5.5 40 7 3.19
9 6.2 1.72 106.2 4.14 7.5 40 7 3.19
10 6.2 1.72 118 4.6 7.5 40 7 3.19
11 6.2 1.72 129.8 5.06 7.5 40 7 3.19
12 6.2 1.72 141.6 5.52 11 40 7 3.19
50DL 2 12.6 3.5 24.4 1450 1.55 3 54 7.6 2.66
3 12.6 3.5 36.6 2.33 3 54 7.6 2.66
4 12.6 3.5 48.8 3.1 4 54 7.6 2.66
5 12.6 3.5 61 3.88 5.5 54 7.6 2.66
6 12.6 3.5 73.2 4.65 5.5 54 7.6 2.66
7 12.6 3.5 85.4 5.43 7.5 54 7.6 2.66
8 12.6 3.5 97.6 6.2 7.5 54 7.6 2.66
9 12.6 3.5 109.8 6.98 11 54 7.6 2.66
10 12.6 3.5 122 7.75 11 54 7.6 2.66
65DL 2 30 8.33 32 1450 4.22 5.5 62 7.6 2.82
3 30 8.33 48 6.33 7.5 62 7.6 2.82
4 30 8.33 64 8.44 11 62 7.6 2.82
5 30 8.33 80 10.55 15 62 7.6 2.82
6 30 8.33 96 12.66 15 62 7.6 2.82
7 30 8.33 112 14.77 18.5 62 7.6 2.82
8 30 8.33 128 16.88 22 62 7.6 2.82
9 30 8.33 144 18.99 22 62 7.6 2.82
10 30 8.33 160 21.1 30 62 7.6 2.82
80DL 2 50.4 14 40 1450 7.84 11 70 7.8 22.49
3 50.4 14 60 11.76 15 70 7.8 2.49
4 50.4 14 80 15.68 22 70 7.8 2.49
5 50.4 14 100 19.6 30 70 7.8 2.49
6 50.4 14 120 23.52 30 70 7.8 2.49
7 50.4 14 140 27.44 37 70 7.8 2.49
8 50.4 14 160 31.36 45 70 7.8 2.49
9 50.4 14 180 35.28 45 70 7.8 2.49
10 50.4 14 200 39.2 55 70 7.8 2.49
100DL72-20 2 72 20 40 1450 10.9 15 72 8 2.8
3 72 20 60 10.9 18.5 72 8 2.8
4 72 20 80 10.9 30 72 8 2.8
5 72 20 100 10.9 37 72 8 2.8
6 72 20 120 10.9 37 72 8 2.8
7 72 20 140 10.9 45 72 8 2.8
8 72 20 160 10.9 55 72 8 2.8
9 72 20 180 10.9 55 72 8 2.8
10 72 20 200 54.4 70 72 8 2.8
100DL100-20 2 100 27.8 40 1450 15.14 18.5 72 7.2 3.53
3 100 27.8 60 22.72 30 72 7.2 3.53
4 100 27.8 80 30.28 37 72 7.2 3.53
5 100 27.8 100 37.86 45 72 7.2 3.53
6 100 27.8 120 45.39 55 72 7.2 3.53
7 100 27.8 140 53 75 72 7.2 3.53
8 100 27.8 160 60.57 75 72 7.2 3.53
9 100 27.8 180 68.14 90 72 7.2 3.53
10 100 27.8 200 75.71 90 72 7.2 3.53
150DL150-20 2 150 27.8 40 1450 20.42 30 80 5.7 2.8
3 150 27.8 60 30.63 37 80 5.7 2.8
4 150 27.8 80 40.84 45 80 5.7 2.8
5 150 27.8 100 51.05 55 80 5.7 2.8
6 150 27.8 120 61.26 75 80 5.7 2.8
7 150 27.8 140 74.47 75 80 5.7 2.8
8 150 27.8 160 81.68 90 80 5.7 2.8
200DL280-20 2 280 41.6 60 1450 55.79 90 84 6 3.7
3 280 41.6 90 83.69 110 84 6 3.7
4 280 41.6 120 111.57 132 84 6 3.7
5 280 41.6 150 139.47 160 84 6 3.7
6 280 41.6 180 163.38 200 84 6 3.7
| Flow rate | 4-500m3/h |
|---|---|
| Head | 10-300m |
| pump material | CAST IRON |
| centrifugal pump | transfer pump |
| feed water pump | supply water |
| booster pump | circulation pump |
| multistage pump | vertical pump |
| china pump | kenshine-pump |
