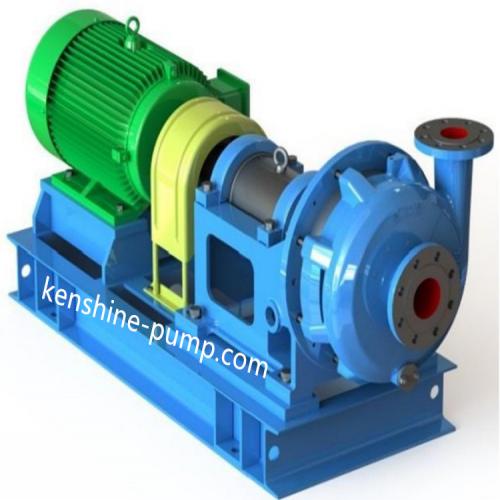

LCF40-350 LCF horizontal centrifugal corrosion resistant wear-resistant desulfurization pump Description

LCF series desulfurization pump is a single-stage single suction bracket /frame type horizontal centrifugal pump, suitable for transporting liquids containing suspended particles, corrosive and abrasive media, viscous media, liquids with scaling characteristics, and liquids containing gases. Widely used in industries such as fertilizer, chemical, sewage treatment, food, paper, sugar, mining, alumina, etc., it is highly favored by users in the industry for its excellent hydraulic performance and outstanding corrosion and abrasion resistance, and has become the preferred pump type for many demanding workstations.

LCF corrosion-resistant and wear-resistant centrifugal pump

Performance and advantages

1) The impeller channel is spacious and has superior hydraulic performance. The front and rear cover plates of the impeller are equipped with back blades, which can reduce medium leakage. Different forms of impellers can be selected according to the characteristics of the medium, and the interchangeability is good.

2) There are multiple sealing forms in the design, which can make reasonable choices for different working conditions and user requirements.

3) The shaft adopts a rigid design, and the bearings use national standard roller bearings and radial thrust bearings, which can withstand large radial forces and ensure long-term operation of the transmission part.

4) The pump casing is sturdy and thick, with smooth inner walls and outstanding corrosion and wear resistance, ensuring a long service life.

5) There is a large conical space between the impeller and the pump cover, effectively preventing the possibility of solid media entering the shaft seal.

6) Equipped with an axial adjustment device, the performance of the pump can be maximally restored by adjusting the gap between the impeller and the pump body in case of certain abrasion and corrosion of the overcurrent components
