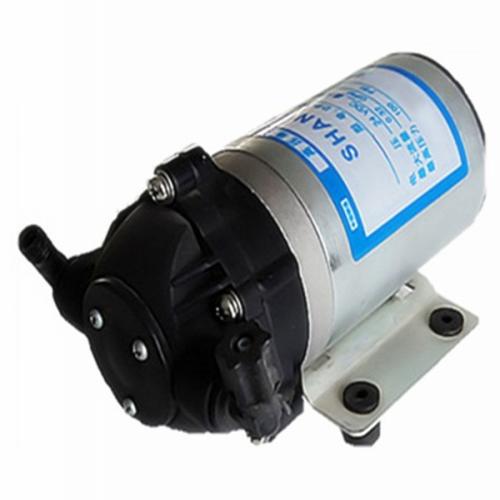

DP-130 DP mini DC diaphragm pump Description

DP mini diaphragm pump

1. Low noise, corrosion resistance to weak acid and alkali, oil resistance, high pressure, self-suction height 5m.

2. Medium temperature can reach 60 degree celsius

3. Allow dry operation.

4. Pressure switch is installed to protect the pump from damage during operation.

5. Overflow valve is installed to control the normal operation of the pump.

6. Easy to disassemble and assemble.

7. Safe low voltage is adopted to ensure personal safety.

DP mini diaphragm pump application

1. DP Mini diaphragm pump is suitable for household tap water pressurization, car washing and ship water desalination.

2. It is suitable for reverse osmosis pure water machine, water treatment equipment, filter, spray device, chemical metering liquid adding, health, environmental protection, printing and other industries.

Power supply: 12vdc.24vdc.12adc, etc.

Model: dp-35, dp-60, dp-60a, dp-100, dp-100a, dp-125, dp-125d, dp-130, dp-130b series mini diaphragm pump

Technical parameters:

Maximum flow rate: 1 to 12.5l /min

Maximum pressure: 0.24 to 0.9mpa

Power: 10 to 40 w

Voltage: 12 or 24 VDC

Pump body material: FRPP

Diaphragm material: EPDM plastic, Nitrile rubber

1. Supply water in the food, lavatory, bath, toilet and flushing water for vehicles, ships etc.

2. water supply system for toilets and drinking fountains of high, medium and low grade passenger cars;

3. water supply system for various recreational vehicles, outdoor campers and family recreational vehicles;

4. other special vehicles, such as blood collection vehicles, ambulances, television broadcasting vehicles, survey vehicles, engineering vehicles and other water systems for personnel on board;

5. water supply systems for various ships etc. The water can be taken directly from the sea, river, lake, pond and well.

6.Food and beverage processing and processing equipment to realize the transfer, distribution and filling of liquid food.

7. Household water supply in Solar industry.

8. Other equipment and systems requiring liquid transfer and injection. For example, cleaning equipment, road construction equipment, purification equipment, cooling system, etc
