• Model Number: FS50-40-20
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

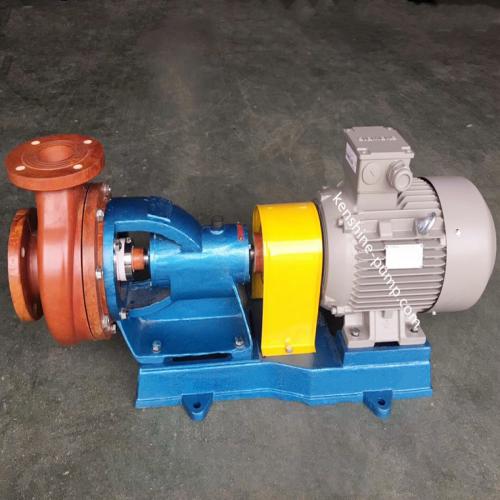

FS50-40-20 Fiberglass centrifugal acid pump Description

Pump Summary:

FS horizontal fiberglass centrifugal pump is designed with advanced and reasonable structure, high standard, strong interchangeability parts and convenient disassembly and maintenance etc. The parts which contact with the liquids for FS fiberglass centrifugal pump are made of polyvinyl butyraldehyde modified phenolic fiberglass by high temperature molding. The pump has the advantages such as light weight, high strength, no deformation, high temperature resistance and corrosion resistance. In the aspect of anti-corrosion, it can partially replace precious metals such as molybdenum-containing stainless steel, titanium and titanium alloy. Shaft seal uses WB2 fitted outside type F4 corrugated mechanical seal and the seal is reliable and has good sealing performance and long service life. Pump drive and direction of rotation: The pump is driven by a claw-type flexible coupling that is driven directly by the motor, and the pump rotates clockwise as viewed from the motor end.

Application:

FS horizontal fiberglass reinforced plastic centrifugal pumps are mainly used in petrochemical,refining,dyestuff,printing,dyeing,pesticide,pharmaceutical,rare earth, leather, fertilizers and other industries. The pumps are suitable to transport various non-oxidizing acids(hydrochloric acid, dilute, formic acid, acetic acid, butyric acid) and other corrosive liquids which do not contain solid particles and are not easy to crystallize and the liquids temperature is no higher than 100 Degree Celsius.
