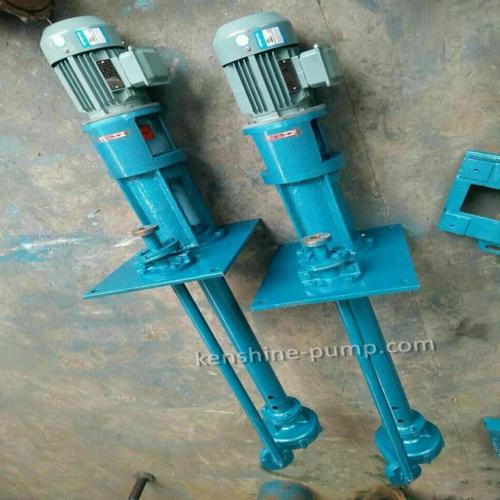

50FY-25 FYB Stainless steel vertical submerged pump Description

Performance range

Flow rate: 1.6 to 2600m3/h

Head: 5 to 132m

Speed: 1450 to 2900r/min

Pump introduction:

FY type vertical submerged pump is a single stage single suction centrifugal submerged pump. The pump rated performance point and flange connection size equivalent to ISO2858 international standard. FY Vertical submerged pump is with small volume, high efficiency, good energy saving effect, reliable operation and other advantages. FY Vertical submerged pump is Suitable to convey corrosive medium without solid particles or abrasive impurity.

Liquid temperature :0  to 105 degree Celsius. When liquid temperature is in -20 to 0 degree Celsius and 105  to 180 degree Celsius, the pump can be equipped with the insulation jacket and cooling jacket and low or high temperature resistant guide bearing.  The user shall specify the liquids situation.

The working pressure of the pump is designed according to 1.6MPa.

For the different fluids, the pump can be made of cast iron, cast steel, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 304, 304L, 316, 316L, 904, alloy no.20, etc.
