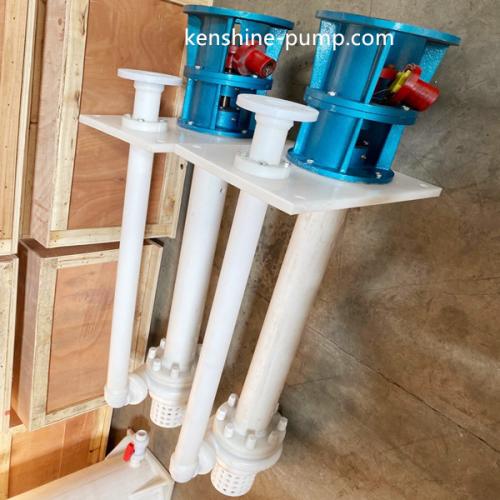

40FYS-20 FYS Vertical immersible fluoroplastic alloy pump Description

FYS Fluorine plastic alloy immersible pump

FYS fluoroplastic alloy corrosion resistant immersible pump is a single stage single suction long shaft type immersible pump with vertical structure. The pump is suitable for conveying corrosive mediums with temperature of 0℃-120℃, without solid particles.

All parts of FYS series fluoroplastic immersible pump which contact with the medium are covered with fluoroplastic alloy, and the lower jacket is made of high-quality silicon carbide, which has the advantages of wear resistance and corrosion resistance, etc.  The pump body and impeller are partially immersed in the liquid, so it occupies a small area and the shaft seal has no leakage. The operation of FYS chemical pump should be started in the direction indicated by the pump, without reversing operation. The pump body must be submerged in liquid when starting, and the liquid level must be 180mm higher than the Central Line of the impeller.

Pumped liquids:

Pump is widely used to convey acid, alkali, salt, organic solvent, etc

model significance

For example: 50 FYS - 25

50: suction inlet diameter (mm)

FY: vertical submerged pump

S: fluoroplastic (F46/FEP)

25: head (m).
