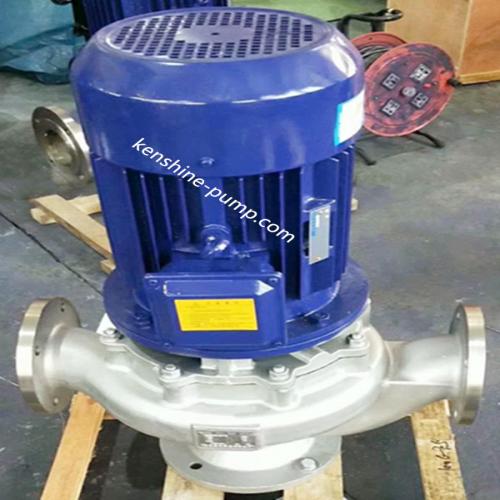

GWP100-100-15-7.5 GW non-clogging pipeline pump Description

GW non clogging pipeline pump
Not clogged impeller (Single flow channel or double flow channel)
GW non-clogging pipeline pump adopts unique impeller structure and new mechanical seal, which can effectively transport wastewater with solids and long fibers. The impeller adopts single flow channel or double flow channel which is similar to a bend pipe with the same cross section size. Equipped with a reasonable volute chamber, the pump can convey the sewage or wastewater with solid particles or fiber etc. impurities. The pump has no vibration in operation.
The pump can be made of cast iron or stainless steel. It has remarkable energy-saving effect, anti-winding, non-clogging, automatic installation, and automatic control etc. characteristics. It has a unique effect in discharging wastewater with solid particles and long fiber.

features
1. Compact structure, easy to move, simple to install, no need to build pump room, reduce project cost.
2. It can operate within the full head range without overload of the motor.
3. The center line of inlet and outlet is on the straight line, which can be installed directly anywhere in the pipeline.
4. Strong discharge capacity and no blockage.
5. Reasonable design, small power of supporting motor, remarkable energy-saving effect.
6, wear - resistant mechanical seal.

Application:
1. hospital, hotel, high-rise building sewage discharge.
2. Discharge of thin mud in municipal engineering and construction site.
3, farm sewage discharge and rural farmland irrigation.
4. Water supply device for water plant.
5. Mine exploration and water treatment equipment.
6. Water supply and drainage for water conservancy projects.
7. Enterprise wastewater discharge.
8. Urban sewage treatment plant discharge system.
9. Sewage and drainage stations in residential areas.
10. Subway, basement, civil air defense drainage station.

service conditions
1. The medium temperature shall not exceed 80 ° C.
2. The weight of medium transported is 1 ~ 1.3kg /dm3.
3, The cast iron pump is used to transport wastewater without corrosion
4, when the pump is working, the pump should be well ventilated around.
5. 1Cr18Ni9Ti stainless steel pump can be used for conveying various corrosive wastewater liquids.
