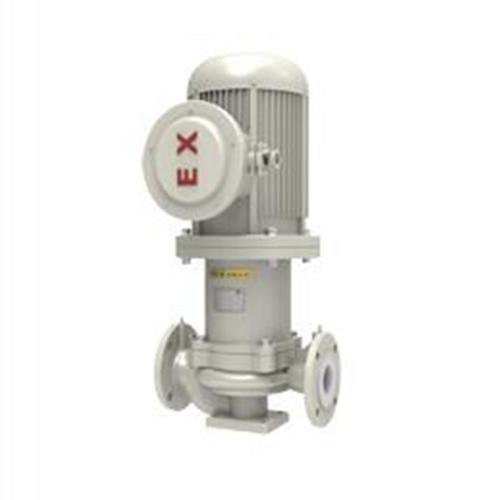

HCLF32-200 HCLF Vertical fluorine lined magnetic drive pipeline pump Description

HCLF Vertical pipeline fluorine-lined magnetic pump

No leakage fluorine-lined magnetic pipeline vertical pump (hereinafter referred to as: Magnetic pipeline pump) is the application of modern magnetics principles, use of permanent magnet magnetic transmission to realize non-contact transmission of torque of a new type of pump, which is outside the motor to drive the rotor (that is, the outer magnetic steel) assembly rotates, through the role of magnetic field lines passing isolation sleeve inside the rotor (that is, the magnet steel) assembly and synchronous rotating impeller, because the media is closed in the stillness of the isolation set inside, so as to achieve the aim of no lekage pumping medium, thoroughly solved the mechanical transmission shaft seal of pump leaks, designed the whole sealing, no leakage, no pollution, high efficiency and energy saving of new industrial pump, performance reached the international standard. HCLF Vertical pipeline fluorine lined magnetic pump can replace the expensive imported chemical pump.

HCLF fluorine-lined magnetic pipeline pump

1.HCLF no leakage fluorine-lined magnetic pipeline pump is a new type of magnetic pipeline pump developed and designed by us according to HCF series products. It has both the characteristics of pipeline centrifugal pump and the advantages of magnetic pump.

2. The hydraulic components of the pump body, impeller and pump cover are designed by CFD computer for module design and precision casting. It is characterized by wide passage, high efficiency, good cavitation allowance, small radial force, accurate dimension, smooth passage and good interchangeability.

3. Fluoroplastics (PTFE, FEP, PFA) are the best corrosion resistant materials in the world (commonly known as "king of plastics"), which can transport any concentration (strength) of acid, alkali, oxidizer and other corrosive media without damage;

4. Ferrite magnet, neodymium iron boron and samarium cobalt are selected for the magnet, which has good magnetism, high temperature resistance and non-demagnetization; Its magnetic energy product is 28 trillion gauss otters, and the limit of temperature tolerance is 350℃. Under the condition of conventional cooling, the maximum service temperature is limited to 260℃, which cannot help demagnetization to the maximum extent, making the theoretical service life of magnetic materials as high as 20 years

5.Dynamic ring, shaft sleeve and sliding bearing are made of silicon carbide and other materials with high wear resistance and temperature resistance, which have high strength, good wear resistance and strong corrosion resistance, effectively ensuring the service life of the pump.

6. No leakage, all sealing points are closed static seal, driven by magnetic coupling, no nitrogen seal is required, safe, economical and efficient, completely solve the medium leakage

7. Straight connection back pull design, no need to remove the pipe, easy maintenance.

8. Vertical installation, compact structure, small footprint, small vibration, low noise, especially smooth operation;

9. Drive by coupling into synchronous drag, no contact and friction. Low power consumption, high efficiency, and damping vibration, reducing the impact of motor vibration on the pump and the impact of pump cavitation vibration on the motor;

HCLF vertical fluorine lined pipeline magnetic pump application

HCLF vertical fluorine lined pipeline magnetic pump is Widely used in petroleum, chemical, alkali production, smelting, rare earth, pesticides, dyes, medicine, papermaking, electroplating, electrolysis, radio, into a foil, scientific research institutions, defense industry etc to  transport corrosive fluid in the production process. The pump is particularly applicable to convey flammable, explosive, volatile, toxic, high temperature, alkali, organic fluxing agent and precious liquids.
