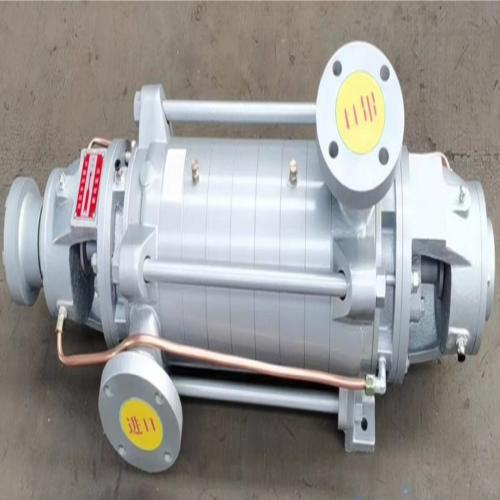

ZQR-18 High temperature multistage centrifugal water pump for steam recovery Description

High temperature water pump for steam recovery

   high temperature and high pressure water pumps, steam high-temperature condensate water recovery pumps, steam recovery pumps, steam recovery pumps, high-temperature and high-pressure water pumps, high-temperature water pumps,

The mechanical shaft seal must not be leak water or oil;

Pressure up to 25bar, temperature up to 2300C

Durable, small size, low in noise, and easy to maintain.

Usage:

Commonly used for water supply pressurization, boiler water replenishment, steam condensate recovery, high-temperature water transportation, high-temperature and high-pressure water pumps for boilers, multi-stage high-temperature water pumps, steam recovery water pumps, steam condensate dedicated pumps, steam recovery pumps

Detailed introduction

1. The pressure supporting components of the pump are thickened and the pump

casing is made of ductile iron, which has strong pressure supporting capacity.

2. The flow components of the pump are optimized and designed using CFD flow field

analysis technology, resulting in high efficiency.

3. The static seal between the inlet, middle, and outlet sections of the pump adopts a

metal seal and an O-ring dual channel seal. The pump shaft seal adopts an imported

mechanical seal, which is safe and reliable.

4. The rotor adopts two balancing processes of static and dynamic, strictly controlling

the rotor's weight, ensuring stable pump operation and low vibration.

5. The bearing is directly installed on the pump shaft to reduce assembly errors. The

bearing adopts an enlarged design, with strong bearing capacity and long service life.

6. The shaft is forged with high-quality heat-resistant chromium molybdenum alloy

steel, which has undergone multiple heat treatments, non-destructive testing, and

precision processing. It has high precision, good rigidity, and good stability during high

operation.

7. The pump is designed for high-temperature condensate recovery, using corrosion-

resistant, high-temperature resistant, and cavitation resistant materials. A first stage

impeller is added, which has better corrosion and cavitation resistance. The maximum

operating temperature can reach 220

0C, and the maximum working pressure can reach

30KG/cm

2

8. Adopting a unique shaft shoulder positioning structure, the impeller positioning is

more reliable and safe to operate. Suitable for high-temperature condensate recovery,

boiler water supply, and can also be used for water supply and drainage in factories,

cities, and mines.

Features:

1. The pump structure is sturdy, and the pump casing has undergone water pressure

testing. It adopts a mechanical shaft seal, which has a good leak prevention effect

2. The moving impellers are all balanced and calibrated, and will not vibrate during

operation.

3. Through special design, the operating temperature can reach 220

degree celsius and the maximum pressure can reach 30KG/CM2

4. The product has excellent performance and reliable quality.
