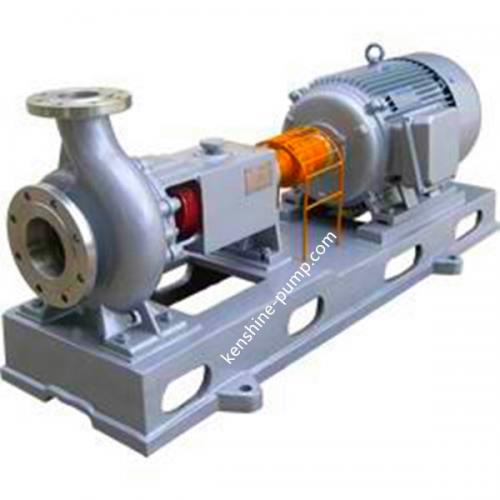

HJ80-65-160 HJ chemical process centrifugal transfer pump Description

HJ single-stage single suction cantilever chemical process centrifugal pump is developed on the base of IH chemical pump. The rated performance and installation dimension conform to the standard ISO2858. Pump material can be for cast iron, cast steel, 304, 304L, 316, 316L, CD-4MCU, 904, 904L, Hastelloy alloy, etc.

HJ chemical process alkali pump is suitable to convey corrosive liquids such as lye, electrolyte, electroplating water, concentrated acid, bleaching liquid and urea etc.  Impeller is for semi-open type. HJ chemical process pump is also suitable for the chemical process within a solid content less than 50% of slurry and medium transmission of crystallization of impurities.

HJ chemical process pump is widely used in alkali making industry, non-ferrous metallurgy, iron and steel industry, acid making industry, petroleum industry, synthesis and type material industry, paper industry, chemical fertilizer and pesticide industry, pharmaceutical industry, environmental protection water treatment and Marine industry.

Flow: 30 to 1200

Head: 8 to 80

Speed: 1450 /2900

Liquid temperature: -20 to 200 Degree Celsius.

It need not remove the pump shell and impeller to adjust the pump clearance, reduce the maintenance time, save maintenance costs. (back pull out structure).
