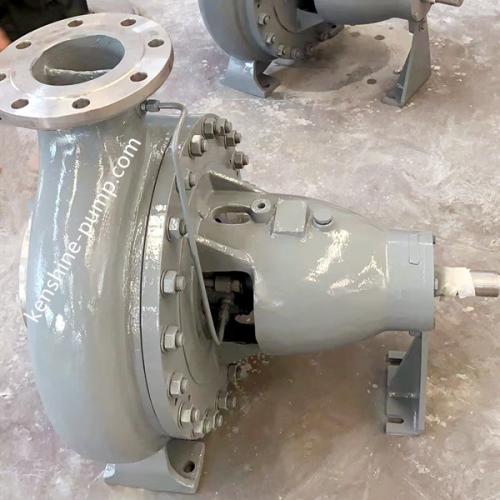

CZ150-500 Horizontal stainless steel centrifugal chemical pump Description

Stainless steel centrifugal chemical pump

CZ pump is a horizontal, single-stage and single-suction centrifugal pump, whose size and function conform to DIN24256/ISO2858 scale. The function scope of CZ chemical pump includes all the performances of IH series standard chemical pump, and its efficiency, cavitation performance and other indicators are better than IH pump. It is the ideal pump type for chemical and petrochemical industry, oil refinery, paper mill and pulp industry, grain industry and other fields

Handle fluids:

CZ pump Can transport low temperature or high temperature liquid; Neutral or corrosive liquid; Clean liquid or liquid containing solid particles. It can also be used to transport a variety of temperature and concentration of sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid and other inorganic acid and organic acid, a variety of temperature and concentration of sodium hydroxide and sodium carbonate and other alkaline solution or various liquid petrochemical products, organic compounds, and other corrosive materials and products

Performance

Flow rate (Q) 3.2-2000m3/h head (h) 7-160m working temperature (t) -80-300 degrees working pressure (P) 2.5mpa

Shaft seal

The shaft seal can be made of soft filling seal (can be cooled or not cooled), and can also be made of single and double face non-balance mechanical seal of various structures
