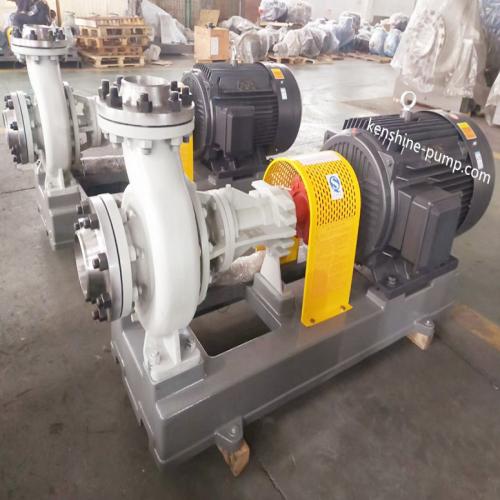

RY100-65-230 hot oil circulating pump for thermal fluids heating system Description

RY Hot oil circulating pump for thermal fluids heating system

Horizontal, Single stage single suction cantilever foot support structure, the inlet of pump is axial suction, the outlet is vertical upward. The pump is installed on the baseplate together with the motor.

Double end ball bearing support with the front end with lubricating oil and the rear end lubricated with lubricating grease. There is a guide pipe in the middle for observing the sealing recovering thermal oil, Air-cooled for natural heating dissipation

The combination of packing seal and mechanical seal is adopted.  High-temperature resistant packing seal and hard alloy mechanical seal for the good sealing under high temperature conditions.   PTFE lip seal.

The pump is used to transfer high temperature liquids without solid particles.  The fluids temperature up 350 degrees Celsius.   Pump material: cast iron, stainless steel etc.

Application

Widely used in hot oil furnace oil supply circulation systems and hot oil heating circulation systems in industries such as petroleum, chemical, rubber, plastics, pharmaceuticals, textiles, printing and dyeing, road construction, food, and machinery etc.
