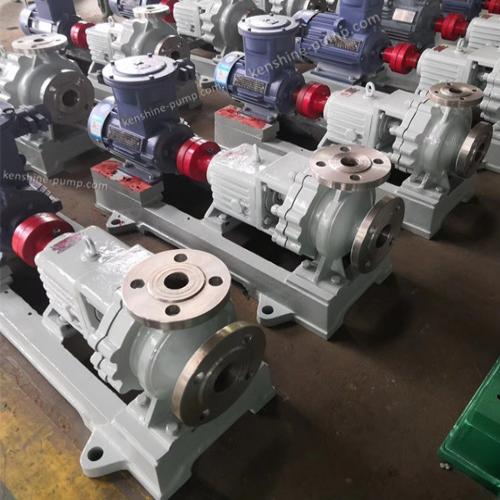

IH200-150-315 IH horizontal stainless steel chemical pump Description

IH series horizontal stainless steel chemical centrifugal pump.

Flow parts of IH Stainless steel centrifugal pump is made of 304, 316L high-quality stainless steel material. The hydraulic model of the pump is advanced. IH Stainless steel centrifugal pump can be designed within a single mechanical seal (IH - ND), built-in double mechanical seal (IH - NS) and a mechanical seal outside (IH - WF) and so on many kinds of sealing structure. Installation dimensions of IH Stainless steel centrifugal pump accord with standard of ISO2858 / GB5652 and can also according to customer need to configure the API682 standard corresponding rinse solution.

IH Stainless steel centrifugal pump is widely used in petroleum, chemical industry, medicine, health, pesticide, papermaking, dyes, sewage treatment and other fields.

IH stainless steel centrifugal pump has the features of high efficiency and energy saving, strong cavitation resistance, wide applicable temperature range etc. It has the advantages of stable operation, low noise and vibration, high reliability and long service life.

IH Stainless steel centrifugal pump is widely used to convey alkali, alcohol and various organic solvents etc.

Flow Q: 6.3 ~ 400m3/ m2

Head H: 5 ~ 132m

Speed n: 2900, 1450r/min

Belt power: 0.55 ~ 110KW

Inlet diameter: 50 ~ 200mm

High working pressure: 1.6mpa

IH chemical centrifugal pump is single stage single suction cantilever type centrifugal pump. Operation temperature: -20 to 105 DegC for the pump with single end face mechanical seal and operation temperature: -20 to 280 DegC for the pump with double end faces mechanical seal.
