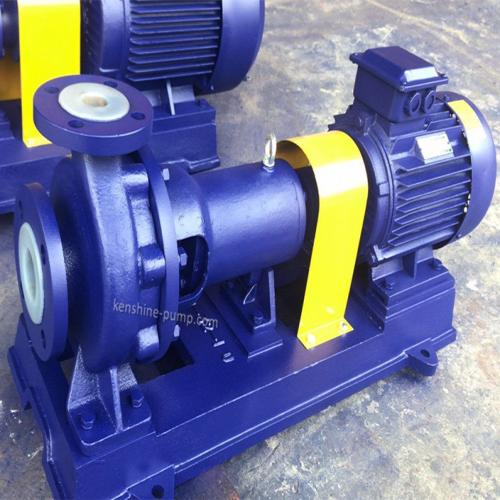

IHF fluorine plastic liner chemical transfer pump
- Model Number: IHF125-100-200
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1SET
- Supply Capacity: 1000Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
IHF125-100-200 IHF fluorine plastic liner chemical transfer pump Description
IHF fluorine plastic liner pump is a single-stage single-suction fluoroplastic alloy chemical centrifugal pump. IHF fluorine plastic liner pump is designed in accordance with international standards and combined with the processing process design of non-metallic pumps. The pump has the advantages of corrosion resistance, abrasion resistance, high temperature resistance, no aging, high mechanical strength, no toxin decomposition, wide use temperature, conveying medium temperature of -85℃-200℃ and so on.
IHF fluoroplastic-lined centrifugal pump is designed according to international standards. The pump body is lined with polyperfluoroethylene propylene (F46).The pump cover, impeller and shaft sleeve are all made of metal lined with fluorine plastic integrated sintering and pressing, and the shaft seal is made of externally installed bellows mechanical seal. Static ring is made of 99.9%(alumina ceramics or silicon nitride) and dynamic ring is filled with tetrafluoride. The seal is the corrosion-resistant and wear-resisting seal and the seal performance is superior and reliable.
This pump is suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, water, strong alkali, strong oxidant, organic solvent, reducing agent and other harsh conditions of strong corrosive media. IHF fluorine plastic liner pump is one of the world's new corrosion resistance equipment. The pump has the advanced and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable work, low noise, long service life etc.
Flow: 6.3 ~ 400m3/h
Head: 5 ~ 132m
Speed: 2900, 1450r/min
Power: 0.55 ~ 110KW
Inlet diameter: 50 ~ 200mm
High working pressure: 1.6mpa
Parameter:
Model
Speed n=2900 r/min
Speed n=1450 r/min
Capacity
( m3/h)
Head
m
Power
Kw
NPSH(r) (m)
Efficiency (%)
Capacity
m3/h
Head
m
Power
Kw
NPSH(r)
(m)
Efficiency (%)
IHF50-32-125
12.5
20
2.2
3.0
51
6.3
5
0.55
3.0
45
IHF50-32-160
12.5
32
4
3.0
46
6.3
8
0.55
3.0
40
IHF50-32-200
12.5
50
7.5
3.0
39
6.3
12.5
1.1
3.0
33
IHF65-50-125
25
20
3
3.5
62
12.5
5
0.55
3.5
55
IHF65-50-160
25
32
5.5
3.5
57
12.5
8
1.1
3.5
51
IHF65-40-200
25
50
11
3.5
52
12.5
12.5
1.5
3.5
46
IHF65-40-250
25
80
18.5
3.5
50
12.5
20
3
3.5
43
IHF80-65-125
50
20
5.5
4.0
69
25
5
1.1
4.0
64
IHF80-65-160
50
32
11
4.0
67
25
8
1.5
4.0
62
IHF80-50-200
50
50
15
4.0
63
25
12.5
2.2
4.0
57
IHF80-50-250
50
80
30
4.0
66
25
20
5.5
4.0
51
IHF100-80-125
100
20
11
4.5
77
50
5
1.5
4.5
74
IHF100-80-160
100
32
15
4.5
73
50
8
2.2
4.5
69
IHF100-65-200
100
50
30
4.5
73
50
12.5
5.5
4.5
68
IHF125-80-160
160
32
30
5.0
70
80
8
5.5
5.0
74
IHF125-100-200
200
50
55
5.0
65
100
12.5
11
5.0
71
| Flow rate | 2-200m3/h |
|---|---|
| Head | 3-80m |
| pump material | F46 Fluoroplastic liner |
| centrifugal pump | chemical pump |
| transfer pump | circulating pump |
| corrosion resistant pump | acid pump |
| alkali pump | solvent pump |
| china pump | kenshine-pump |
