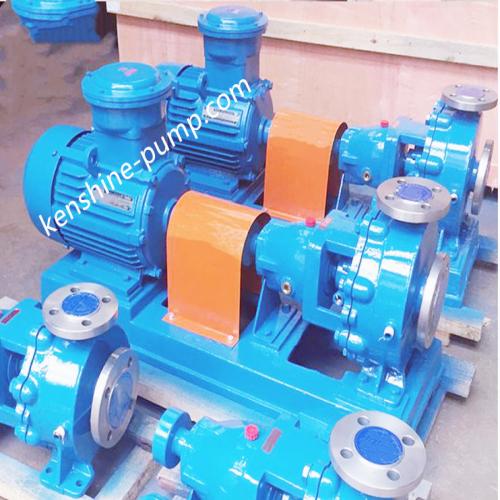

BW40-32-200 IHK-BW stainless steel chemical centrifugal pump with heat jacket Description

IHK-BW series chemical centrifugal heat preservation pump is a single-stage single-suction centrifugal pump with heat preservation jacket, which is improved on the basis of general chemical pump IH type. It is mainly suitable to convey the medium which is easy to crystallize under low temperature, or used under the condition that certain medium ensures constant temperature. Heat preservation chemical centrifugal pump can be made by steam or hot water as the heat preservation medium.

The pump has the advanced structure and sealing technology. The pump can transport the fluids with solid content of up to 35%. In the normal case of 8000 hours of continuous work without leakage, Seals effect is for 3-5 times as the general chemical pump. The impeller of the pump is an open structure, so it will not be blocked by the high content of solid medium. The pump is the most ideal chemical industry pump to transport heat preservation fluids.

According to the different media pumped, the pump can be made of different materials such as A3, 321, 304, 316, 316L, duplex stainless steel and other materials.

Back pull out structure

Gland packing or mechanical seal

Performance range:

Flow: 1.6-400 m3 / h

Head: 5-125 - m

Size: 25 - ф ф 200 mm
