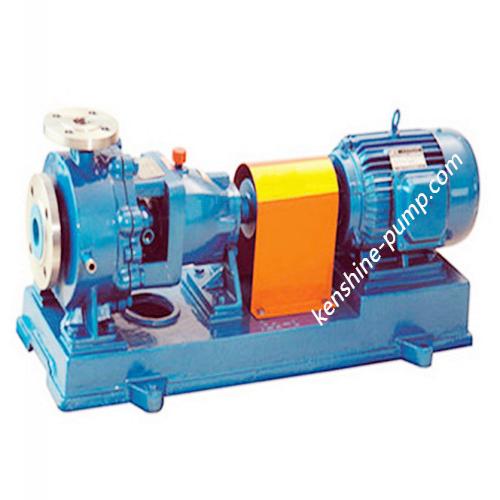

IN jacket heat preservation chemical pump
- Model Number: IN50-32-250
- Brand Name: kenshine-pump.com
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1set
- Supply Capacity: 500Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
IN50-32-250 IN jacket heat preservation chemical pump Description
IN series jacketed stainless steel heat preservation pump， steam heat preservation pump, corrosion resistance and crystallization resistance chemical pump
IN Series new fused/melt urea pump is a single stage single suction Cantilever centrifugal pump.
The pump is Suitable for conveying melting urea liquid in chemical fertilizer plant and other corrosive liquid without suspended particulate matter. The temperature of the medium is allowed -20~180 degrees Celsius. The pump is horizontal suction, radial top spit out and the front side of the pump has a heat preservation jacket, double jackets can allow 0.59mpa and 170 degrees Celsius steam insulation.
Users can choose different materials according to the degree of corrosion performance of the medium, models and different flow head can be regulated.
Parameter range
Flow: 2-400 m3 / h
Head: 3-125 m
Speed: 2900 r/min/1450rpm
| flow rate | 2-400m3/h |
|---|---|
| Head | 3-125m |
| pump material | stainless steel |
| centrifugal pump | chemical pump |
| transfer pump | circulation pump |
| corrosion resistant pump | stainless steel pump |
| heat preservation pump | industrial pump |
| kenshine-pump | china pump |
