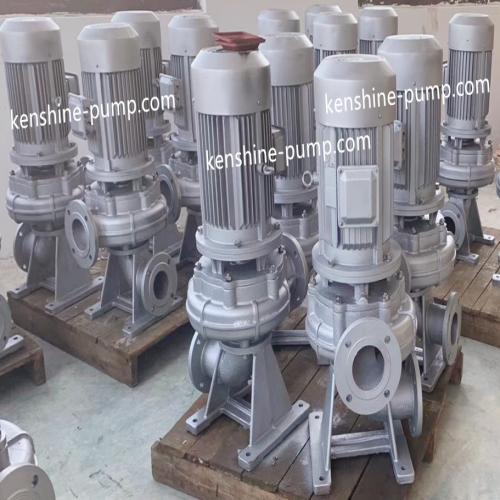

LW100-100-15-7.5 LW vertical sewage wastewater treatment pump Description

LW Vertical wastewater sewage pump is single suction volute pump which is equipped with non-clogging and anti-winding single(double)large-channel impeller, with good passing capacity for wastewater. LW vertical wastewater pump is used for the transportation or discharge of wastewater with solid particles or fiber etc. impurities.

LW pump has two types in structure. One is the motor and pump is for the direct coaxial connection and the other is with shaft coupling connection. The motor is the standard vertical motor.  Each structure has two connections for the base plate. One is the horizontal suction with corner function. According to the use requirements, suction and discharge angle can be for 0, 90 degree,180degree, 270 degree for the convenient pipe connection. The other is the axial suction to have the convenient vertical installation.

Vertical sewage pump is widely used in factory business seriously polluted wastewater emissions of urban sewage treatment plants, sewage station of main housing, water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries to transport sewage wastewater containing particles, dirt etc. and it can also be used for water and weak corrosive liquids.

Q:2-1500m3/h

H:3-45m

N:970RPM-2900RPM

Working temperature:-15 to 60DegC
