• Model Number: 150NB-25
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

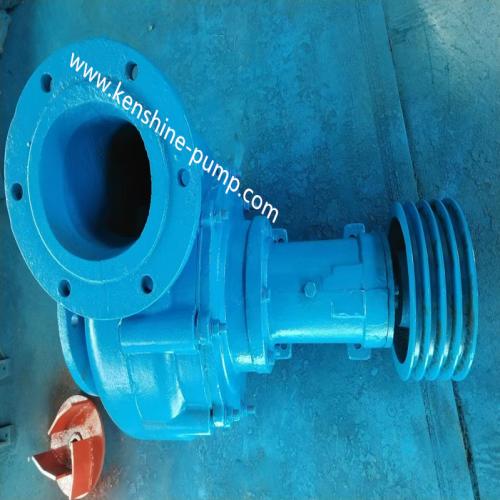

150NB-25 NB Series sand sludge slurry pulp pump sewage drainage Description

Wear resistance

Easy to install

Support customization

Thickened material

Diesel engine or electric motor optional

This pump is suitable for river dredging, dredging and solidifying embankments, coal mines, power plants, and transporting slurry containing solid particles in mines, with a medium concentration of over 40%. Widely used in sand pumping and hydraulic filling projects

Product application scope and usage methods

1.       The NB series sand pump is mainly composed of a pump body, impeller, protective plate, pump cover, bracket, and bearing components.

2.        The materials of the pump body, impeller, and protective plate can be made of high manganese ductile iron, high chromium alloy, and non-metallic wear-resistant materials. Users can choose it according to their intended use when placing an order.

3.       The shaft seal of the pump adopts packing seal, and high-pressure flushing water is added to the packing chamber to ensure the normal operation of the pump.

4.       The direction of the pump is counterclockwise when viewed from the inlet, and the outlet of the pump is on the right side of the horizontal direction when viewed from the inlet. If necessary on site, the outlet can be adjusted within a 360 degree range.

5.       It has the characteristics of high efficiency, energy saving, wear resistance, corrosion resistance, reliable operation, high head, large flow rate (maximum mixed flow rate can reach 2000-5000 cubic meters/hour), deep pumping depth (up to 30 meters deep), wide transportation distance and applicability. The solid-liquid mixture concentration conveyed can reach 60%. Can be equipped with electric motor or diesel engine drive.

Application:

Suitable for enterprises such as river, lake, and sea sand extraction, sand blowing and land reclamation, river dredging, dredging and solidifying embankments, sand extraction and selection of iron ore, tailings extraction, coal mining, power plants, and mines to transport media containing solid particles, sand extraction ships for sand extraction, sand loading ships, and land-based relay for long-distance transportation of sediment
