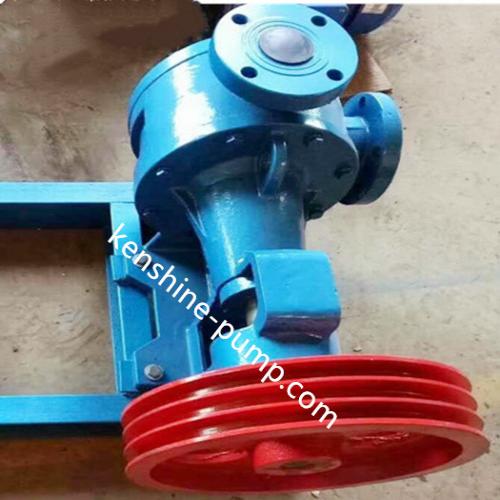

NCB6/0.5 NCB high viscosity fluids internal gear pump Description

NCB internal gear rotary pump
NCB internal meshing gear pump uses the principle of gear internal meshing. Internal and external gear joint circle close to one side, the other side is covered by the pump "crescent plate" separated. The internal driving gear on the main shaft drives the internal and external gears to rotate in the same direction. At the inlet, the gears separate from each other to form a negative pressure and suck in the liquid. Because of this unique structure, it is especially suitable for conveying medium with high viscosity. The viscosity range is: 0.2-1000000cp;
NCB Internal gear pump can be reverse transmission, as long as the motor can be replaced;
The pump body of internal meshing gear pump can be turned, the inlet and outlet position can be 90 angle to easily choose the inlet and outlet.
There is the inlet and outlet interface of head preservation or cooling device In the pump body, end cover, bearing housing of Internal meshing gear pump.
NCB Internal gear pump has the features: no trapped oil phenomenon, smooth delivery, high efficiency, low noise, the advantages of life plant.
NCB internal gear pump is suitable for conveying the Newton liquid or non-newton liquid in petroleum, chemical, coating, dye, food, oil, medicine and other industries. The conveyed liquids can be from light, volatile liquid, until heavy, viscous, and even semi-solid liquid.
NCB internal gear pump material has cast iron, cast steel, stainless steel and so on
NCB internal meshing gear pumps are suitable for conveying a wide range of light, volatile liquids, up to heavy, viscous liquids, and even semi-solid liquids.NCB internal gear pump is widely used in petroleum, chemical, oil, coating and other industries. NCB internal gear pump suitable for transport of saponin, silicone oil, rosin, coating and other high viscosity medium, the application is very wide.
