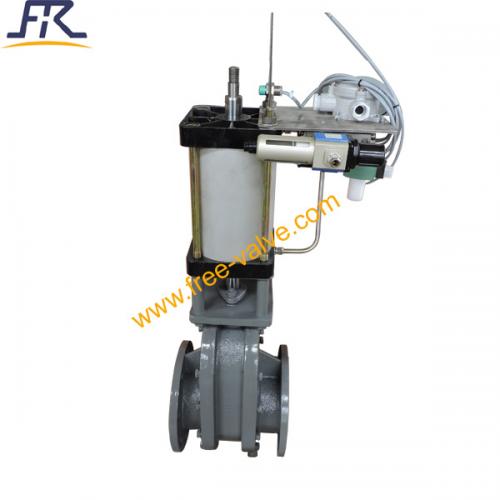

Pneumatic Metal-on-Metal Double Disk Valve

Model Number: FRZ644Y-10C
Brand Name: FRZ644Y-10C
Place of Origin: Henan, China
Minimum Order Quantity: 2 Sets
Supply Capacity: 200 Sets /Month/month
Payment: T/T,L/C
MemberShip: Free Member
Inquiry Now
Bookmark & Share:

FRZ644Y-10C Pneumatic Metal-on-Metal Double Disk Valve Description

FREE-VALVE brand Pneumatic Metal-on-Metal Double Disc Valve is mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and valve disc auto-rotate, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently, thereby, which guarantee the high requirements of sealing performance of this valve and long working time.

Features:

1. Sealing pair is made of hard alloy，which have perfect performance to resist wear and flushing.

2. Two-side sealing can realized due to double disc structure of the pneumatic double disc gate valve.

3. It inserts spring between double valve disks to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.

4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.

5. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.

Technical Parameters

1) Size Range: NPS2~NPS12,DN50~DN300

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature: 0~200℃

4) Connection Type: Flange

5) Sealing material: Hard Alloy

6) Pressure test:GB/T13927, API598

7) Face to Face: GB/T12221, ASME B16.10

8) Flange standards:ASME B16.5，GB/T9113

9)Operating Type: Pneumatic
