• Model Number: QDN6-24-1.1
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

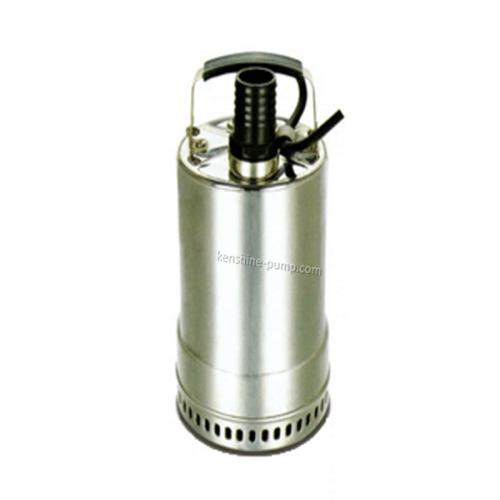

QDN6-24-1.1 QDN Stainless steel submersible pump driven by single phase 220V motor Description

QDN domestic submersible pump is developed and produced by our company. QDN Stainless steel domestic submersible pump is made of 304, 306 and 316L stainless steel with Wear and corrosion resistant mechanical seals. QDN stainless steel submersible pump has beautiful appearance, small size and a single - phase 220V power supply. The motor is asynchronous dry motor and cooled by pumping medium. QDN stainless steel submersible pump can be equipped with float switch, according to water level change to have automatic control of pump start or stop. QDN small stainless steel submersible pump looks beautiful and can be used in full head range with high efficiency, low noise, stable performance, long service life and other advantages.

Application:

Domestic submersible pump for high-rise residential water supply

Domestic submersible pump for deep water

Domestic submersible pumps for small fountains

Household submersible pump for agriculture, gardening irrigation

Working conditions

Household diving pump medium: water, sea water

medium temperature: 0 to 40 DegC

Medium PH value: 4 to 10

Power requirements: frequency of 50Hz.Single phase, rated voltage 220 V 5%.

Performance range:

QDN submersible pump technical parameters

Maximum flow: 6 m3 / h

Maximum head: 80m

Power range: 0.55 to 1.5kw

Discharge diameter: 25mm,40 mm,50mm, 65mm
