QZ1.0 QZ Pneumatic high pressure piston/plunger pump high pressure pump Description

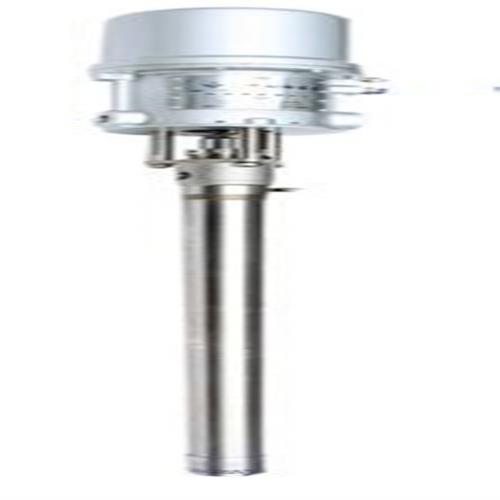

Pneumatic high pressure piston/plunger pump

Introduction:

The surface of stainless steel for the pump is polished and treated tightly which does not damage chemical properties of the material and can increase the speed of transportation.

The pump can handle many kinds of high viscosity fluids and strong corrosive liquids.

There are fewer maintenance parts to reduce the maintenance cost.

Pneumatic pump provides high mechanical life

  Model:QZ10:1

  Pressure ratio:10:1

  Maximum flow:11.4LPM

  Air motor diameter:6” (152.4mm)

  Maximum hydraulic pressure: 1800PSI (60bar)

  Air source inlet size:1/2”NPT(F)

  Liquid inlet size:3/4”NPT(F)

  Liquid outlet size: 3/4”NPT(F)

  Piston rod, liquid cylinder material: Cast steel or stainless steel

  Seal, piston ring material: UHMEWPE/Teflon

  Pump length:57.3inch (1456mm)
