RY80-50-200 RY high temperature hot oil centrifugal pump Description

Ry high temperature thermal oil pump has reasonable structure, excellent performance, reliable use. RY high temperature thermal oil pump is Suitable to convey high temperature liquid without solid particles. The degree of corrosion resistance and the temperature of use depend on the material of the main parts which contact with the liquids.

Application

1. Petroleum and chemical industry

2. Oil and grease industry

3. Synthetic fiber industry

4. Textile and dyeing industry

5. Plastics and rubber industry

6. Paper industry

7. Wood industry

8. Construction industry

In addition, RY series thermal oil pumps are also widely used in the mechanical industry, food industry, pharmaceutical production, hot oil furnace oil supply circulation system, hot oil heating circulation system.

performance range

Flow: 1 to 500m3/h

Head:10 to 125m

Liquid Temperature: -20 to 350DegC

structure introduction

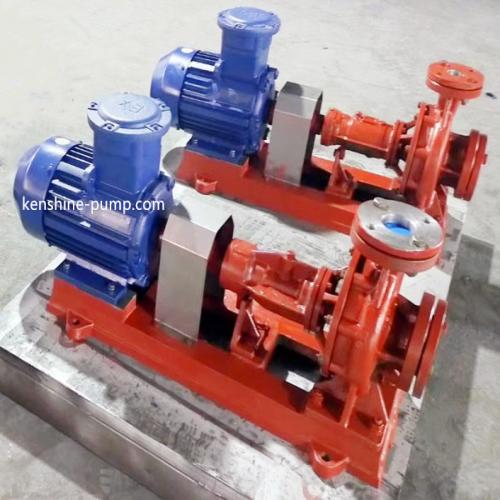

RY thermal oil pump is a single-stage cantilever centrifugal structure with foot support and center support. The pump inlet is for axial suction and the outlet is vertical upward. The pump and the driving motor are mounted on the same base by an elastic coupling. No cooling system is needed for the whole unit.

RY thermal oil pump is mainly composed of shell, rotor, bearing, seal and other parts, using packing seal structure. The additional heat resistant oil seal plays the role of auxiliary seal. The pump and motor are connected by a three jaw type elastic coupling.

RY thermal oil pump has changed the traditional hot oil pump structure. The natural heat cooling way reduce the volume of the pump. The structure is simple and reliable to save operating costs.
