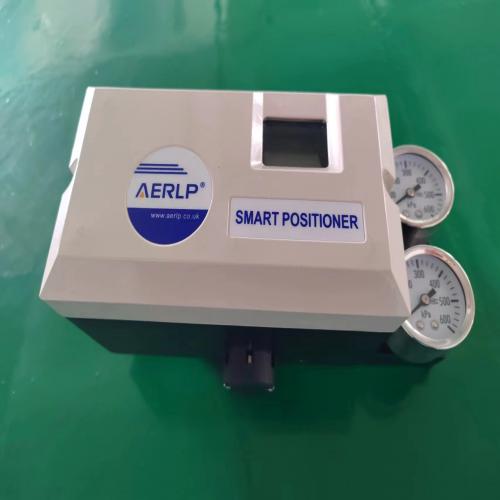

ALP2100-SERIES sart positioner Description

1. Overview

1.1  Performance  profile  of  the  ALP210  The  ALP210  uses  a  microcontroller electronic control unit, the PID exact algorithm of the  pneumatic instrument. With keys, LCD dot array screen display, HART  communication and MSBUS communication functions. Adopt modular structure, compact, strong, reasonable design. High cost performance, simple  maintenance, to avoid unnecessary user costs.

operation panel

ALP locator built-in operation panel, equipped with 3 keys and LCD LCD display, simple and convenient operation. With simple debugging and automatic, manual operation switching function. Can facilitate the stroke adjustment and automatic sealing function to open and close. You can also view the run parameters.

Pneumatic performance

With many years of experience in pneumatic instrument design, the carefully optimized single-action and dual-action amplifier structure brings great convenience to users and saves the use cost. Modular structure, easy to repair, replacement. The ALP locator is equipped with two output interfaces, blocking an output interface is a single-action valve positioner, and can also change the interface to change the form of the valve action.

communication

ALP has two modes of communication, MSBUS can be used to connect to  a dedicated operator or computer, HART communication module (not standard, selected when purchase) can be connected to HART operator or (through  HART-adjustment demodulator) to the computer.

signal output

ALP has the valve position feedback function (not standard, selected

Instructions Version Number:：20/01-2.01-CN

function when purchase), using the two-line loop power supply technology, the power supply voltage drop is less than 6VDC at 20mA. No calibration, automatic follow, the accuracy is better than 0.5%. modular structure

ALP adopts modular design structure, circuit board control module, pneumatic amplifier module, I / P conversion module, sensor module, can be very convenient maintenance and replacement.

Principle  structure  diagram

the key technical indexes

1. Input signal range: 4~20mA; the dividing range is 4~12mA and 12~20mA. 2. Feedback signal range: 4~20mA; the range is 4~12mA and 12~20mA.

3. Equivalent resistance: 425 Ω (625 Ω; HART protocol type)

4. Control accuracy: 0.5%

5. Lineity: 1%

6. Sensitivity: adaptive; or artificially set during which the period is 0.1%~5%

7. Gas supply pressure range: 0.14~0.55MPa

8. Gas consumption: static gas consumption is 50NL / h ; dynamic unassessment

9. Environmental conditions: temperature: -25~ + 60℃ ; humidity: 90%

10. Dynamic resistance: 2g (5~200HZ)

11. Safety parameters: Ui=28VDC;Ii=93mA;Pi=0.65W;Ci=1nF;Li=0.2mH;

12. Storage conditions: temperature: -40~ + 85℃ ; humidity: 95%

13. Protection level: IP66

Programmable parameters

1. Enter the starting point range: 4~12mA

2. Input end point range: 12~20mA

3. Input signal: convertable direction

4. Output signal: convertable direction

5. Off limit: starting point 0~10% End point ranged from 90% to 110%

6. Trip adjustment: starting point 0~30% End point is 70% to 100%

7. Trip time: 0~200S

Instructions Version Number:：20/01-2.01-CN

8. Output characteristics: linear, 1:25,1:50 optional

9. Tolerance band: 0.1%~10% adjustable

10. PID parameters: tunable

ALP210 Main part names and functions

component

explain

body

Housing, upper cover, position sensor

Control panel, circuit unit

Control circuit board, shortcut operation keys

I / P electrical conversion module

Telecom signal-to-gas signal conversion module

pneumatic amplifier

The amplifier will generate the gas signal from I / P to control the actuator intake and exhaust.

Pressure gauge  connection module

Indicates the input and output pressure.

Feedback rod

Transfer the openness signal to the position

sensor.

Additional circuit unit

Integrated in the control circuit board when an

additional 4-20mA position feedback unit or a

HART protocol unit is selected.

2、Explosion-proof, safety and wiring

2.1  Security overview

This product has passed the strict factory test and meets the requirements of IEC3836.4:2010. In order to ensure this good condition during the running time, the requirements of the instructions and valid documents and certificates must be followed, and the routine safety regulations must be followed when operating the equipment. In addition to the regular safety procedures, descriptions or operating instructions along with specific safety tips. Only pay attention to all safety tips, can effectively prevent personnel and the environment from harm, reliable and normal use of equipment.

2.2 Use of regulations

Instructions Version Number:：20/01-2.01-CN

The ALP210 locator is designed and manufactured for the application of "pneumatic output valve locator for industrial process control system", and is installed on the direct stroke or rotary pneumatic actuator as  required in the instructions. This equipment can only be used as specified in the operating instructions and parameters. Any other use of violations will not be permitted. Input signal circuit / feedback output circuit  wiring must meet the explosion-proof requirements (see 2.3 Safety

explosion-proof requirements for details) The maximum allowable ambient temperature range is-40...65 C Do not repair the circuit part and remove other explosion-proof related devices without authorization.

2.3 Anti-explosion-proof requirements

2.3.1 The product must be matched with the safety grid certified by the explosion-proof inspection agency to form the primary safety

explosion-proof system. Safety parameters are as follows: Input circuit (terminal ± IN) Ui=28V，li=93mA Pi=0.66W，Ci=1nF，Li=0.2mH Output

circuit (terminal ± OUT) Ui=28V，li=93mA Pi=0.66W，Ci=1nF，Li=0.2mH 2.3.2 The connection between the product and the safety gate safety end shall be a shielding cable with a section of> 0.5mm2, and the shielding layer must be grounded. Cable distribution capacitance and inductance value must be less than the safety value. 2.3.3 The safety gate is

installed in a safety place, and it must comply with the operating

instructions. 2.3.4 Users shall not change the electrical components in the products at will. 2.3.5 When installing, using and maintaining the products, users must comply with both the Power Plant Design Code and the relevant GBV3836.15-2000 regulations of the "GB50058-92". ”2.4 Wiring 2.4.1 Input and valve position feedback control signal The input and feedback signals of ALP210 shall be used in explosion-proof situations, with the range of 4~20mADC (limit value 3.8-24mA). Signal cables: To

Instructions Version Number:：20/01-2.01-CN

prevent external interference signals, shield cables with a maximum  length of 1280m are recommended. Control cables are laid separately from the power cables.
