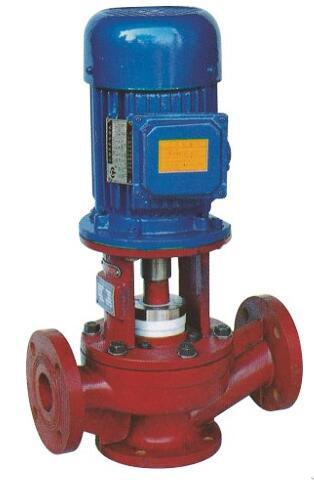

SL40-20 SL Vertical fiberglass pipeline centrifugal pump Description

SL fiberglass Pipeline Acid Chemical Pump

1. Overview

SL glass pipe to pump a single-stage pipeline single-suction centrifugal pump. A new energy-saving pumps, medium flow all part of a modified phenolic glass of the process with a high temperature and high pressure formed, with strong corrosion resistance, high temperature, light weight, high strength, deformation and other advantages.

2. Feature

The selection of advanced pump design, simple structure and functioning balance of reliable, low-efficient, easy maintenance, the overall technological level of its leading position in the domestic, at this stage is resistant to corrosion in the area of the ideal choice pump Type.

3. Usage

Apply to the delivery of various concentrations of hydrochloric acid, low concentration of sulfuric acid and other non-oxidizing acid, organic acids, salts and of a variety of organic solvents, widely applicable to the chemical, petrochemical, pharmaceutical, pesticide, Japan, chemical fiber, water treatment, mechanical , Metallurgy, environmental protection and other sectors of the anti-corrosion areas.

4. Characters

1) Caliber: DN25-DN50mm
2) Flow:3.2-12.5m3/hr
3) Head:12.5-32 m
4) Rotate speed:2900r/min
5) Motor power:0.75-3.4 KW
6) Working temperature: ≤100°C

7) Suitable Medium:hydrochloric acid,Sulfuric acid,Acetic acid,Formic acid etc.

8)Mechanical Seal
