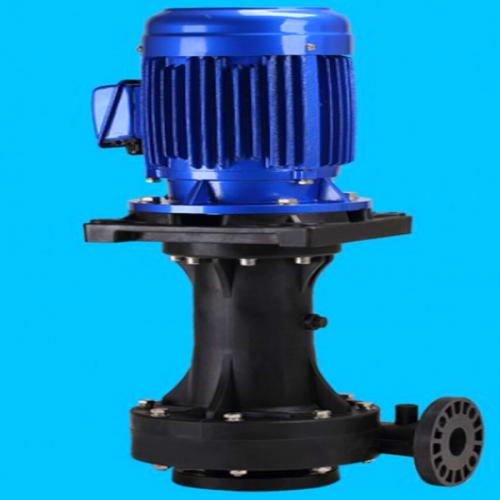

LHW-40SK-35 Vertical acid and alkali resistant chemical pump Description

Vertical acid and alkali resistant chemical (non-submersible type)

 The pump body is made of FRPP, CFRPP, CPVC and PVDF materials, with high temperature and corrosion resistance.  Dry liquid seal can prevent the motor and bearing from being eroded by chemical gas and prolong the service life of the motor and pump.   It is suitable for etching cleaning equipment, exhaust gas washing tower, cooling cycle and matching filter.   Pump can idle (work without liquid) and the pump is not damaged.  Titanium screws are recommended to be used in highly corrosive liquid and environment.  The motor is optionally treated with epoxy resin coating.  Enhanced corrosion resistance and service life.

Vertical chemical pump is Suitable for all kinds of acid and alkali liquid circulation, cooling, spray washing, etching, wastewater treatment and other processes

modelmotor (HP)motor(KW)Voltage(V)Frequency(HZ)Inlet/outlet(mm)Capacity(L/M)Head(m)LHW-40SK-151HP0.75KW380V50HZ50/4015010LHW-40SK-252HP1.5KW380V50HZ50/4020012LHW-40SK-353HP2.2KW380V50HZ50/4030015LHW-50SK-353HP2.2KW380V50HZ65/5035013LHW-50SK-555HP3.7KW380V50HZ65/5048019LHW-65SK-555HP3.7KW380V50HZ80/6558017LHW-65SK-7.557.5HP5.5KW380V50HZ80/6570020LHW-65SK-10510HP7.5KW380V50HZ80/6580025LHW-100SK-15515HP11kw380V50HZ100/100100021LHW-100SK-20520HP15kw380V50HZ100/100120023

flow rate	150-1200LPM
head	10-23M
pump material	FRPP, PVDF
centrifugal pump	vertical pump
chemical pump	industrial pump
transfer pump	circulating pump
acid pump	corrosion resistant pump
kenshine-pump	china pump
