• Model Number: WQ100-100-35
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

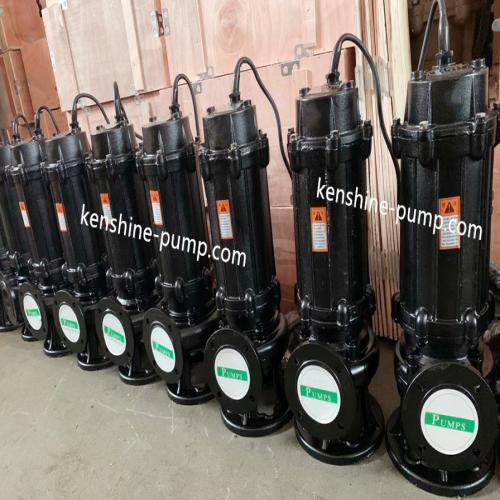

WQ100-100-35 WQ immersible sewage wastewater pump Description

WQ immersible sewage wastewater pump
WQ immersible sewage wastewater pump is widely used for factory business seriously polluted wastewater emissions of urban sewage treatment plants, sewage station of main housing, water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries etc.  WQ submersible sewage pump is used to transport the wastewater containing solid particles, dirt, fiber etc. impurities. When the pump is made of stainless-steel material and it can also be used for the discharge of water and weak corrosive liquids with particles etc. Impurities.
Features:
1.Impeller with single flow channel or double channels to pass the wastewater with solid particles. (non clogged)
2.mechanical seal adopts new friction pair for long-term operation in the oil chamber;
3. Compact overall structure, small volume, low noise, significant energy saving effect, convenient maintenance and replacement.
4. automatic control cabinet can automatically control the overrunning and stopping of the pump according to the required level change, without special person to watch, which is very convenient to use.
5, Two installation ways. Pump with coupling device, mobile pump
6. Pump can be used within the design scope to ensure that the motor will not be over load;
7. The mechanical seal adopts new tungsten carbon material with hard corrosion resistance, which can make the pump run for more than 8000 hours in a safe and continuous conditions.
Performance
Flow range: 8-2600m3/h
Head range: 7-60m
Operating temperature: -15℃-60℃
Motor power: 0.75-280kw
Working pressure: ≤ 1.6mpa
Pump material: cast iron, stainless steel
