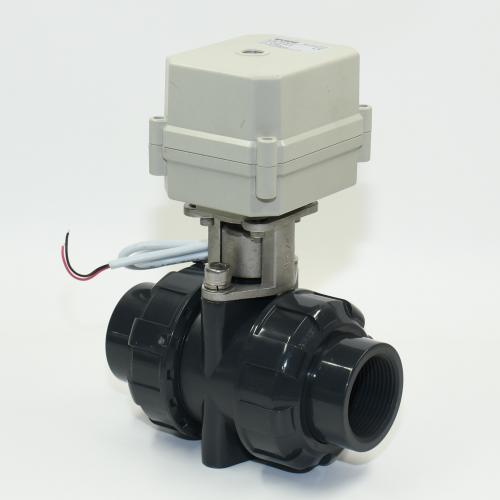

A100-T32-P2-C BSP/NPT 1 1/4'' 2 way UPVC AC/DC9-24V CR202 Motorized Ball valve Description

Product Parameters:

Product sizeNPT/BSP 1-1/4'' Maximum working pressure1.0MPa

Circulation medium

Fluid,airRated votageAC/DC9-24VWiring diagramCR202 Working current≤1AOpen/close time

≤15s

Life time70000times (testing pressure is 0.4MPa,medium is water)

Valve body material

PVC

Actuator material

PPOSealing material

EPDM&PTFE

Actuator Rotation90°Torque force:10N.m

Cable length

0.5m,1.5m(optional)Environment temperature-15℃~50℃Liquid temperature2℃~90℃Manual overrideNoOpen/close indicatorYesProtection classIP67Different valve sizes and wiring methods, contact me for more infornation~

Packing method:

1pc/inner carton,3pcs/master carton,

Labels: Tonhe brand label, neutral label and customized labels (optional)

Special packing requirements and packing qty negotiable.

Inspection:  Air-tight test or water test before packing

Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China, specialized in the development,design,manufacture,sales and technical servise of electric ball valve.Our products are exported to many contries and areas all over  the world,mainly in Europe&America,which won customer's trust and praise.

Application range:

1.air pump tank automatic drainage

2.automatic watering

3.water treatment

4.energy saving

5.industrial automation

6.other small equipments
