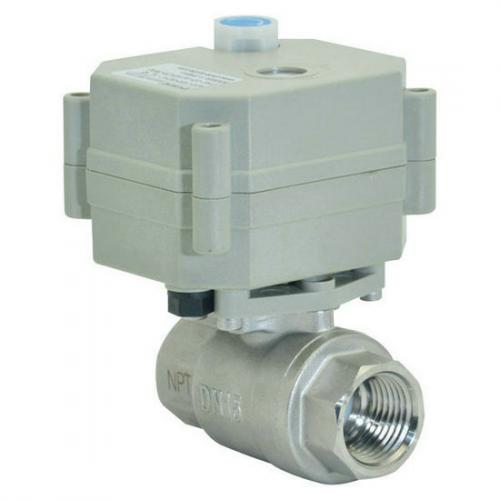

A20-T15-S2-B BSP/NPT 1/2'' 2 way DC5V with manual override and indicator electric ball valve Description

Product Parameters

Valve size NPT/BSP  1/4"  3/8"  1/2"  3/4"  1"  1-1/4"  (Optional )Maximum working pressure 1.0MPaCirculation medium Fluid, airRated voltage DC5V DC12V DC24V AC/DC9-24V DC9-35V AC110-230V (Optional )Wiring diagram CR201 CR202 CR301 CR302 CR303 CR304 CR305 CR306 CR401 CR501 CR502 CR701 CR702 CR703 CR704 (Optional)Working current ≤500mAOpen/close time ≤5S Life time 70000 times(testing pressure is 0.4MPa, medium is water)Valve body material Brass SS304 SS316 (Optional)Actuator material Engineering Plastics PPOSealing material FKM & PTFE Actuator rotation 90°Torque force 2 N.mCable Length 0.5mEnvironment temperature -15ºC~60ºCLiquid temperature 2ºC~90ºCManual operation YesOpen/close indicator  YesProtection class IP67

Product details





Inspection & Packing method
professional pow-on test,water test and air-leakage test before packing.


Product weight:0.4kg(nclude inner carton box)
1pc/inner carton


Application
